Digital Microscope 1200X 600X USB Electronic Video Soldering Microscope Camera PCB Phone Repair Microscope Built-in Battery

Option 1

600X digital microscope, it is not a USB microscope. This Microscope needs to use TF card to transfer data to computer. TF card is NOT included in the package.

Option 2

1200X digital microscope. Can be connected to own computer with a USB cable.

Option 3

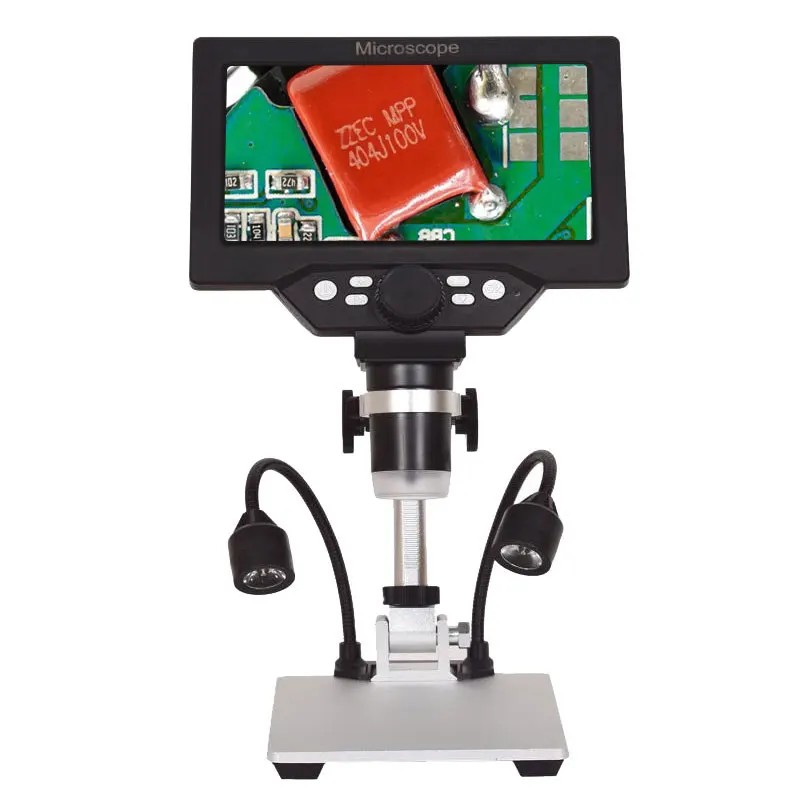

1200X digital microscope with auxiliary light source. Can be connected to own computer with a USB cable.

Digital Microscope for Electronics USB Video Microscope PCB Repair Soldering Microscope Phone Repair Microscope 1200X 600X Portable Electronic Microscope Phone Repair Tools 1080P HD LCD 7-inch / 4.3-inch Display

It can definitely be a fine helper for your daily work. QC inspection, Education purpose inspection, Print industrial, Industrial inspection, PCB material, Jewellery & stamp collection, Textile Industrial, Biological inspection

Sixteen Language Systems:

English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portugal, German, French, Italy, Turkey, Czech, Poland, Traditional Chinese, Simplified Chinese.

600X Microscope Specifications:

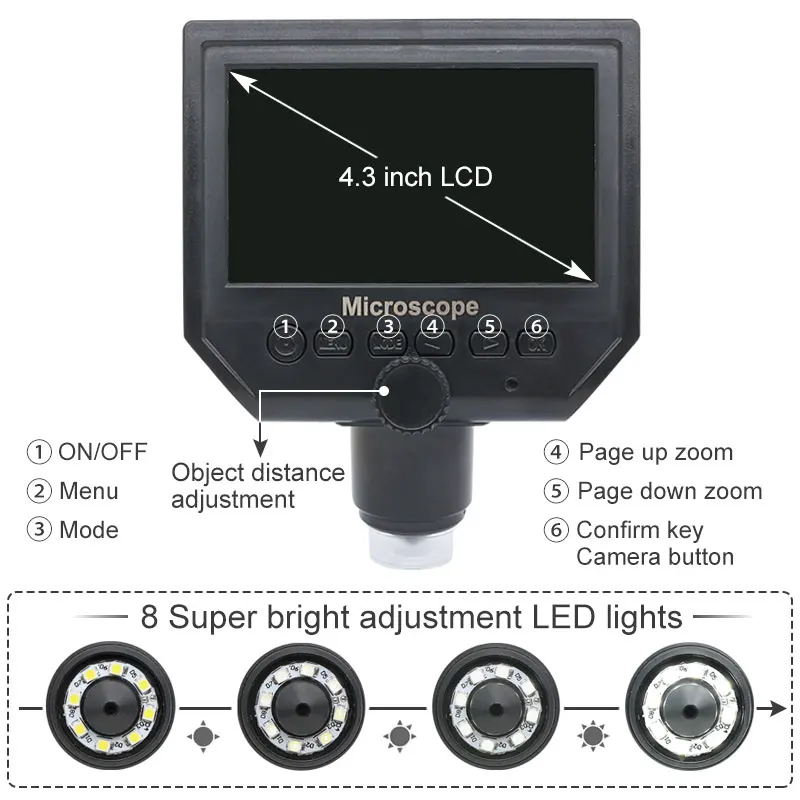

Display: 4.3 inches HD OLED display
Magnification: 1-600x continuous magnification system
Pixel: HD 3.6MP CCD
Object distance: 15 mm-infinity
With built-in lithium battery, Continuous working for 6 hours
Resolution: 1080P, 720P, VGA
Motion Detection: ON/OFF (When it is on it will start to record a video automatically, as soon as detecting something is moving)
Cyclic Record: off/3 minutes/5 minutes/10 minutes
In the memory card is full, it will delete the first video and save the new video automatically
Exposure value: +2.0/(0.0)-2.0
Format: Yse/NO
Language: 16 kinds of languages
Automatic shutdown: off 1 minute minutes
Automatic turn off the LCD: off 1 3 5 minutes
Factory Reset: Yes/No
Time setting: year/month day/hours/minutes/seconds
Light: on/off
Software version: V1.10
Power Supply: 110V-240V

1200X Microscope Specifications:

1: Pixel: HD 12 megapixel

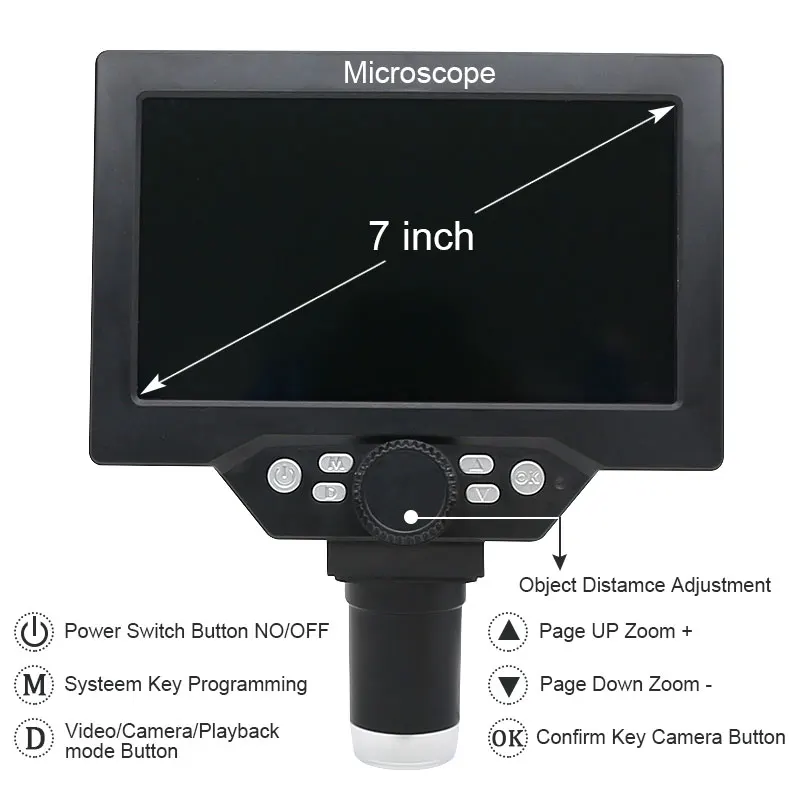

2: Display screen: 7-inch HD LCD display.
3: Magnification: 1-1200 × continuous amplification system.
4: Distance between object: 10MM to infinity (different distances correspond to different multiples)
5: Built-in lithium battery

Package Included:

1x microscope
1x aluminium alloy stand
1x user manual in Engligh

Advantage 1

It is an angle-adjustable digital microscope that solves the problem of high reflection. It’s a great experience in the electronics maintenance industry, and it’s important to note that. This machine has a longer range than the others because it has certain amount of room to operate. It is very convenient to use tweezers, electric soldering iron, solder on PCBs and others under your microscope.

Advantage 2

This is a digital microscope with continuous zoom and zoom, and it has a wide range of viewing options compared to other microscopes, ranging from 1 to 600times/1200 times magnification(optional), and always finding a suitable multiple for you to.

In video mode:

1. Resolution: 1080FHD, 720P, VGA
2. Circulating camera: Off/3 minutes/5 minutes/10 minutes. When the flash memory card is full, the foremost video data will be deleted and the video will be saved.
3. HDR high dynamic range: On/Off (When power on, the video recording function will be turned on automatically if any object moves under the lens without manual operation.)
4. Exposure compensation: 7 grades for option
5. Date Label: Display/Close-Date and Time can be selected on the screen

In Photo mode:

Photograph delay: Single. 2 seconds. 5 seconds. 10 seconds.
Photo pixels: 1.3 M · 2 M · 5 M · 8 M · 10 M · 12 M
Continuous shooting: 3 consecutive shots
Photo quality: Quality · Standard · Compression
Sharpness: Strong · Standard · Soft
Color: Nothingness · Black and White · Nostalgia
ISO: Automatic · 100 · 200 · 400
Exposure compensation: 7 grades for option
Photo assist: Anti-hand shock on/off
Date label: On/Off
Storage space:
Watch: Up · Down Delete Protection

M key: function setting

Screen saver: Off · 30 sec · 1 min · 2 min (optional)
Automatic shutdown: Off. 3 minutes. 5 minutes. 10 minutes
Hz light source: 50 Hz · 60 Hz
Language options: 16 Languages
Date adjustment: year, month, day｜hour, minute, second
Format: YES/NO
Default: YES/NO

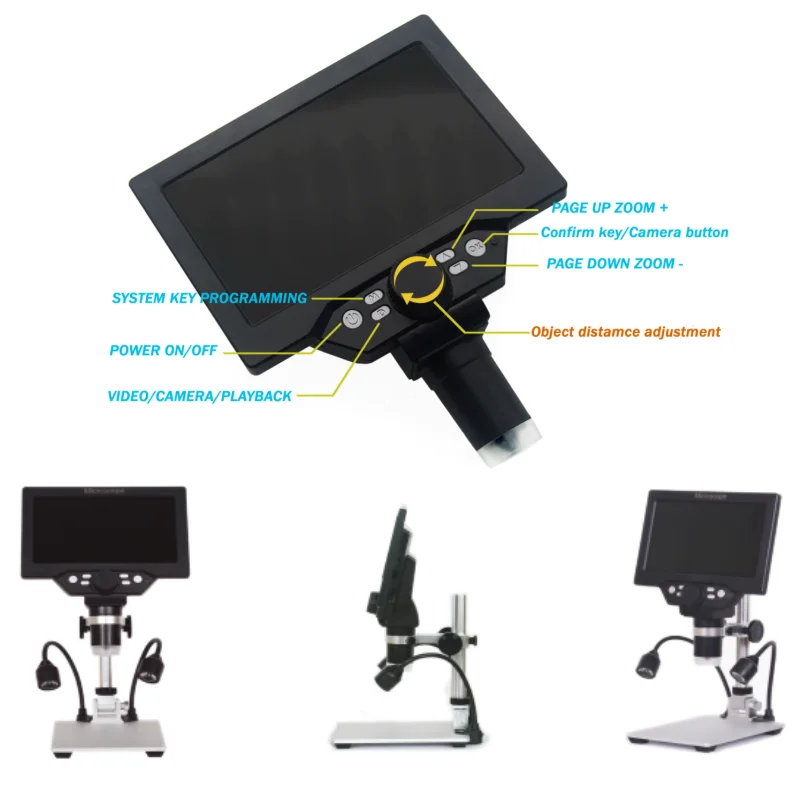

D key: mode keys

Switch: Camera mode, camera mode, playback mode:
Up, Down, OK (Photo/Video, Open)
1: Power supply DC interface (Micro USB).
2: Flash card socket (MicroSD), support 1-128GB. Class10 + speed
3: Light brightness regulator.
4: REST key, system restore. (If the machine is inoperable, press the key in this hole with a needle-like sharp object to restart the machine)

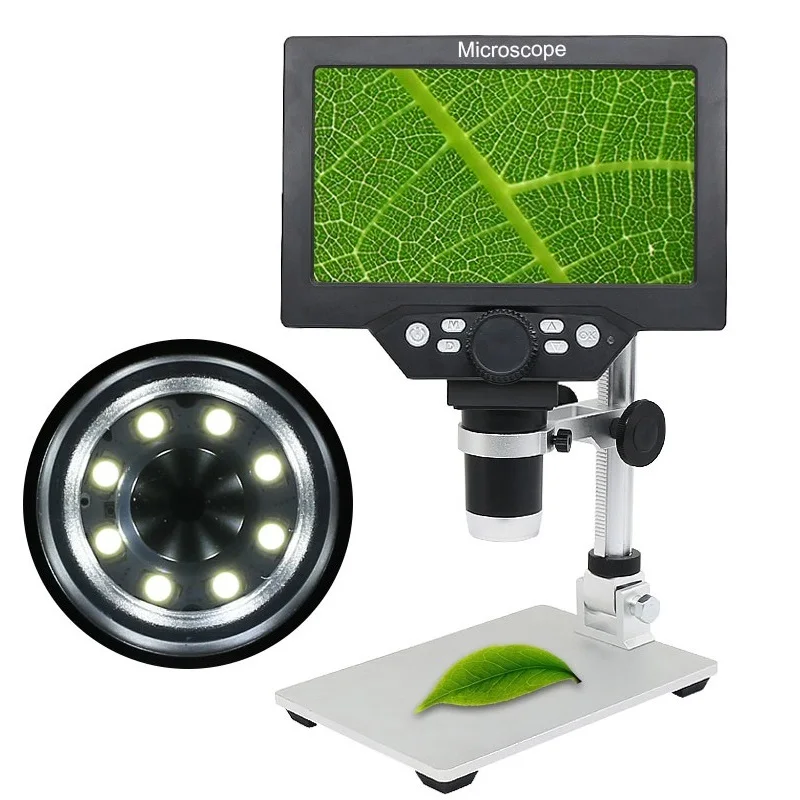

5: Highlight 8 LED lamps with a continuous service life of up to 100,000 hours.

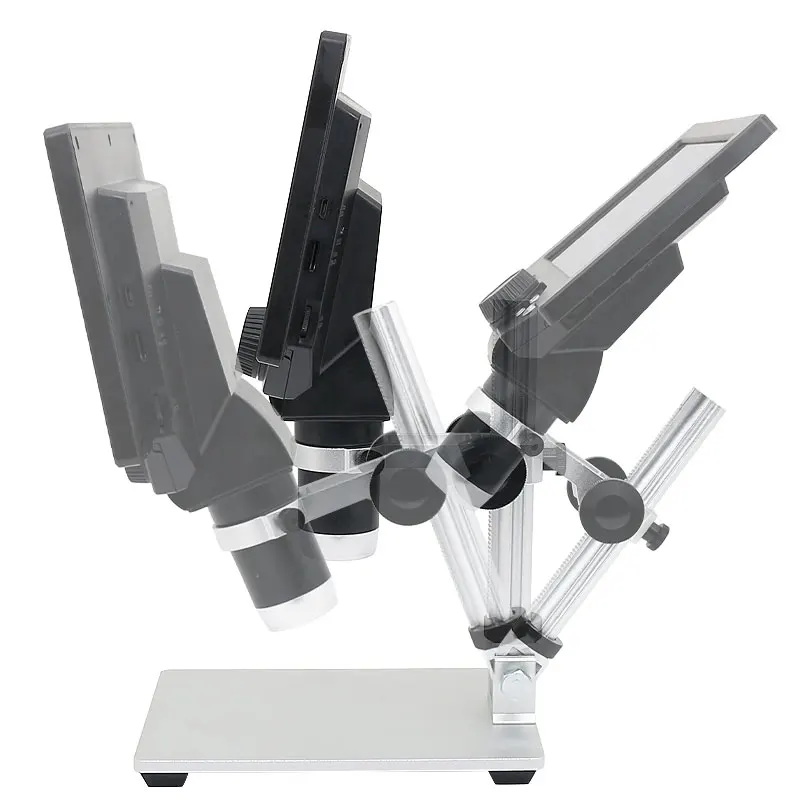

Metal Bracket

Special Intelligent Angle-adjustable Aluminum Alloy Support

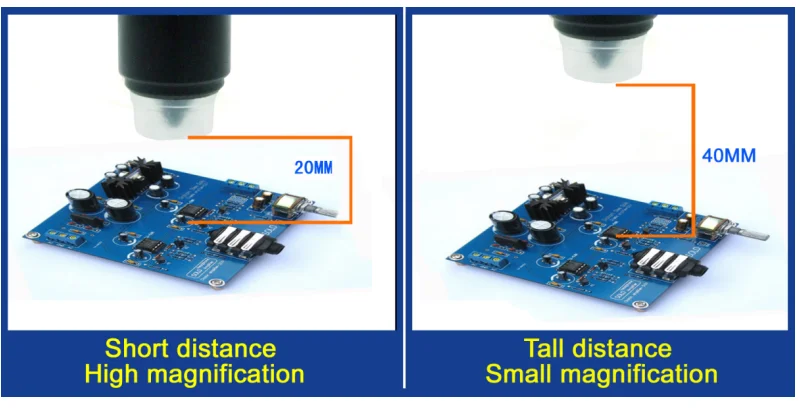

Working Distance

The nearest distance between the machine lens and the object is about 10mm, when the magnification is the maximum. On the contrary, the farther away the lens is from the object, the smaller the magnification is.
