Description
Product Main Features:
3KVA 2400W 24V Pure Sine Wave Inverer +40A-MPPT Solar Charger + 25A Battery Charger
Max Battery DC Volt 31V
Built-in EQUALIZATION Charge Max 31.5V
Fuse Protection (Against DC Reverse Polarity)
MPPT-40A Solar + UTILITY 25A Charge
Works With 220~240Vac Load Only

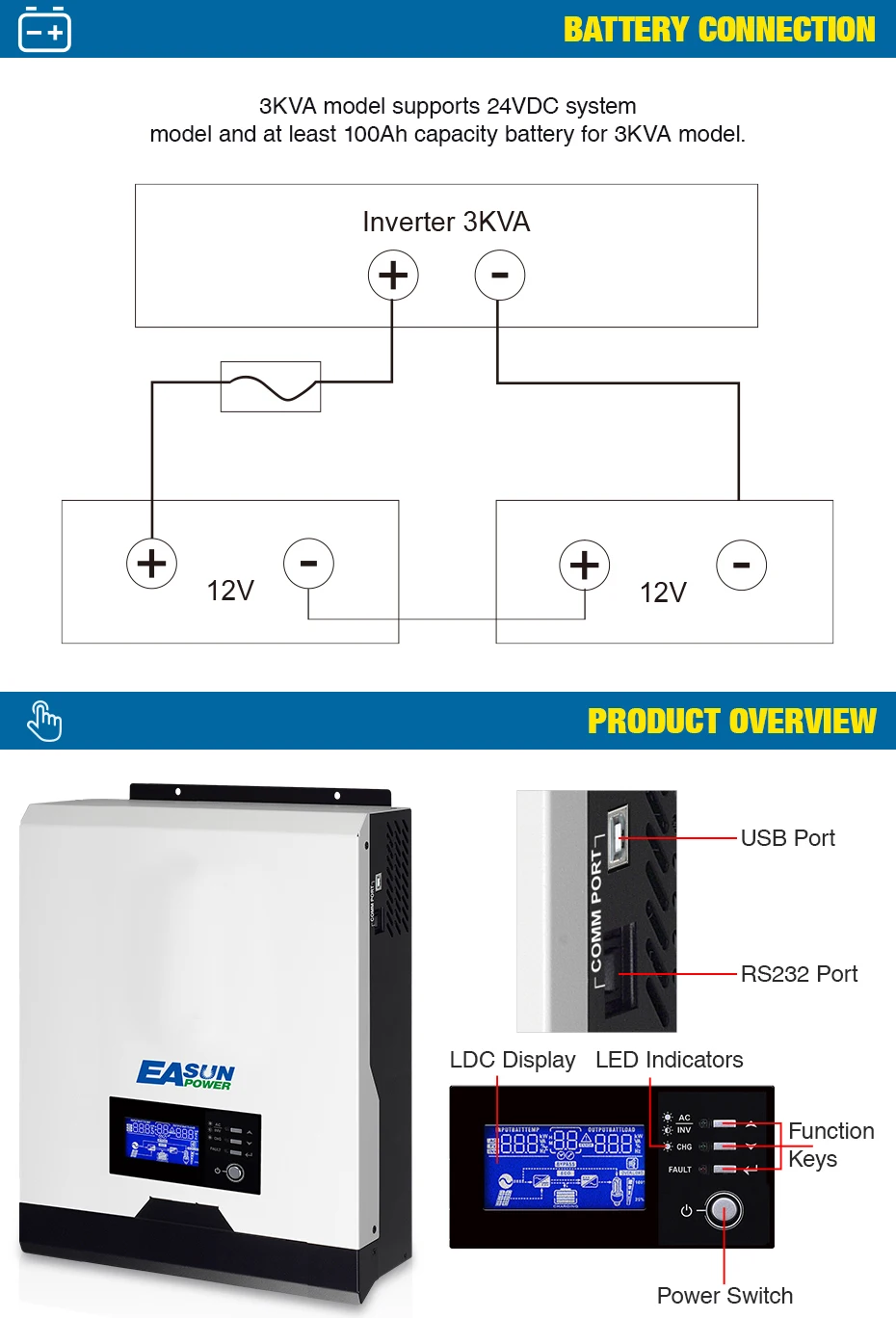

Works With 24v battery system only
Dual priority operation selectable: AC vs. DC mode
Support frequency 50hz or 60hz
Adjustable AC input voltage 90~280VAC
Supports 50hz or 60hz via LCD program
USB comm port

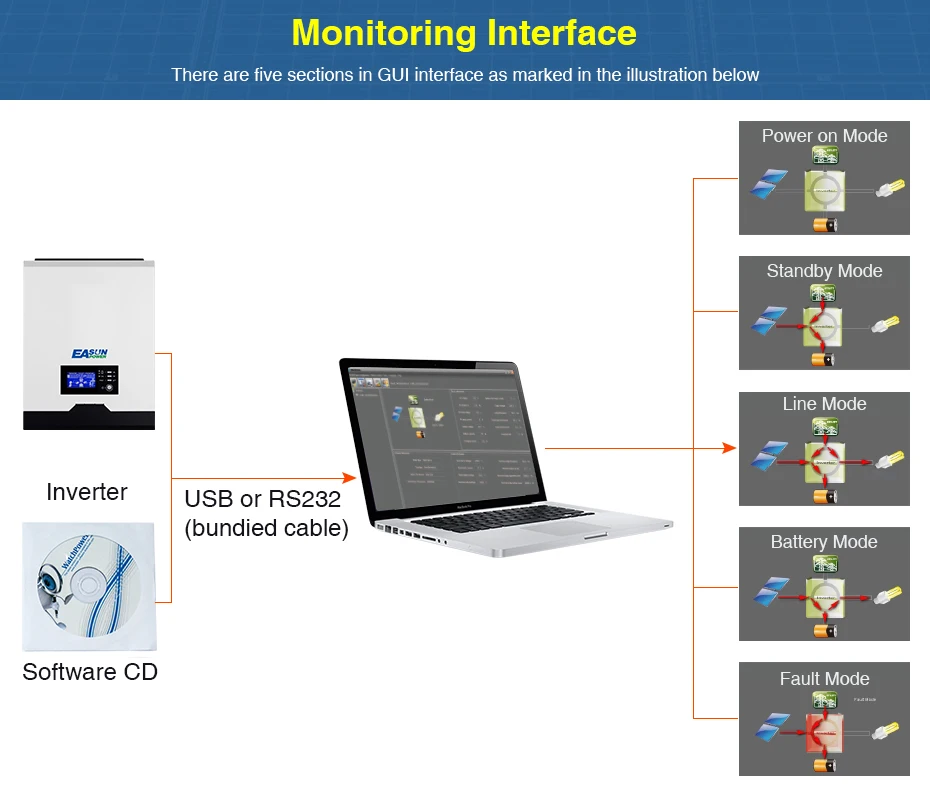

Free monitoring software
Programmable LCD with menu

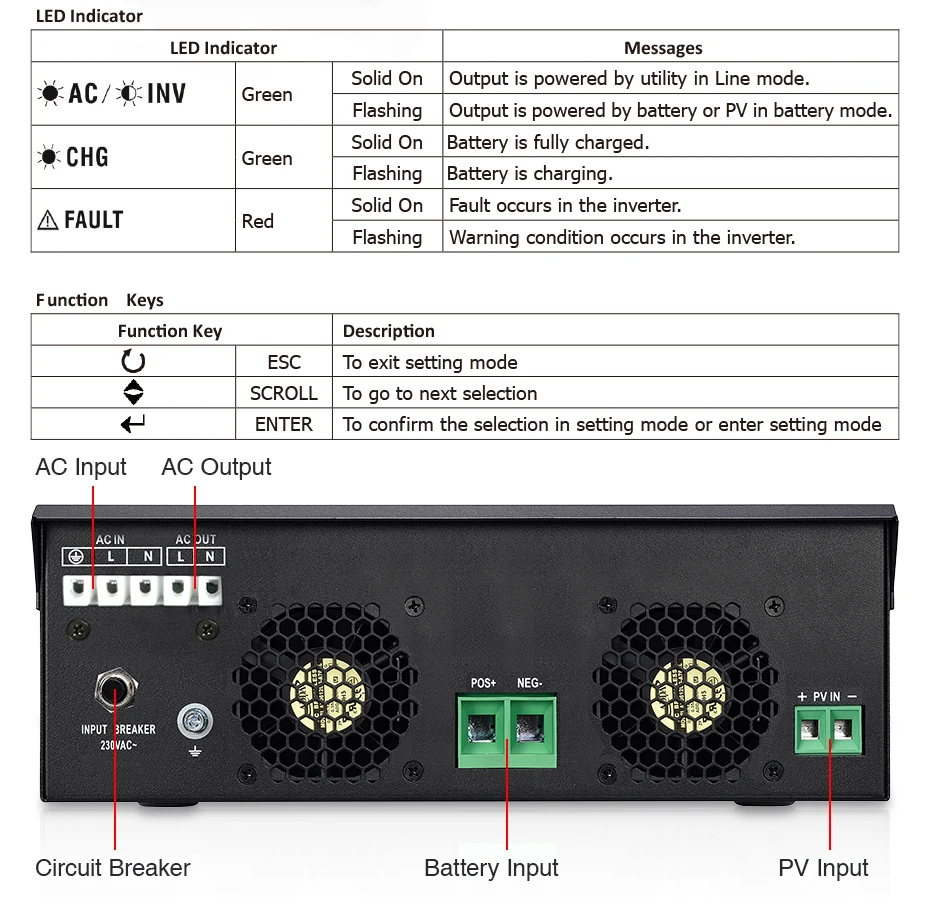

Built-in alarms and protections
Intelligent battery charging control
CE, EMC certified
|
MODEL
|
ISolar SPV 3K
|
ISolar SMV 3K
|
|
Rated Power
|
3000VA / 2400W
|
|
|
INPUT
|
||
|
Voltage
|
230 VAC
|
|
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
|
|
|
Frequency Range
|
50 Hz/60 Hz (Auto sensing)
|
|
|
OUTPUT
|
||
|
AC Voltage Regulation (Batt. Mode)
|
230VAC ± 5%
|
|
|
Surge Power
|
6000VA
|
|
|
Efficiency (Peak)
|
90% ~ 93%
|
|
|
Transfer Time
|
10 ms (For Personal Computers) 20 ms (For Home Appliances)
|
|
|
Waveform
|
Pure sine wave
|
|
|
BATTERY
|
||
|
Battery Voltage
|
24 VDC
|
|
|
Floating Charge Voltage
|
27 VDC
|
|
|
Overcharge Protection
|
31 VDC
|
|
|
SOLAR CHARGER & AC CHARGER
|
||
|
Solar Charger type
|
PWM
|
MPPT
|
|

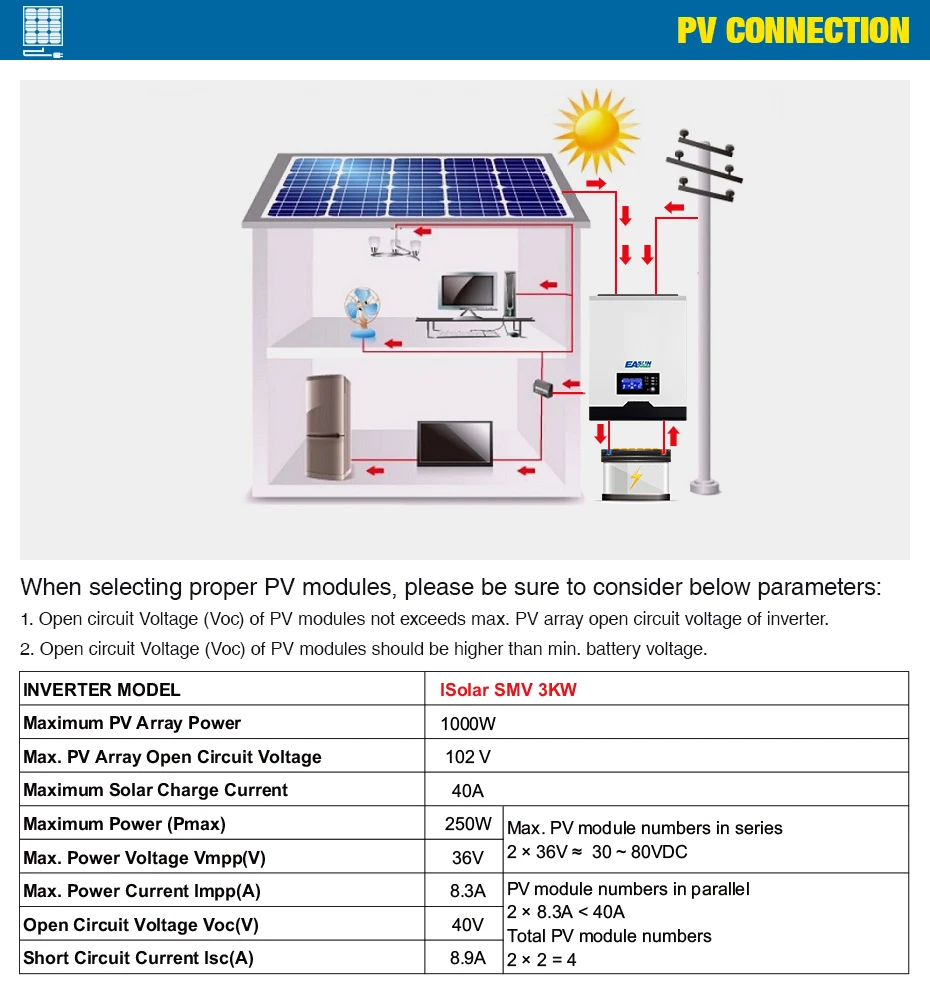

Maximum PV Array Open Circuit
Voltage
|
80 VDC
|
102 VDC
|
|
Maximum PV Array Power
|
1200 W
|
1000 W
|
|
MPP Range @ Operating Voltage
|
N/A
|
30~80 VDC
|
|
Maxmum Solar Charge Current
|
50 A
|
40 A
|
|
Maximum AC Charge Current
|
25 A
|
25 A
|
|
Maximum Charge Current
|
70 A
|
60 A
|
|
PHYSICAL
|
||
|
Dimension, D x W x H (mm)
|
88 x 257.6 x 320
|
|
|
Net Weight (kgs)
|
5.4
|
5.7
|
|
Communication Interface
|
USB/RS232
|
|
|
OPERATING ENVIRONMENT
|
||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
Operating Temperature
|
-10°C – 50°C
|
|
|
Storage Temperature
|
-15°C – 60°C
|
|
