Description

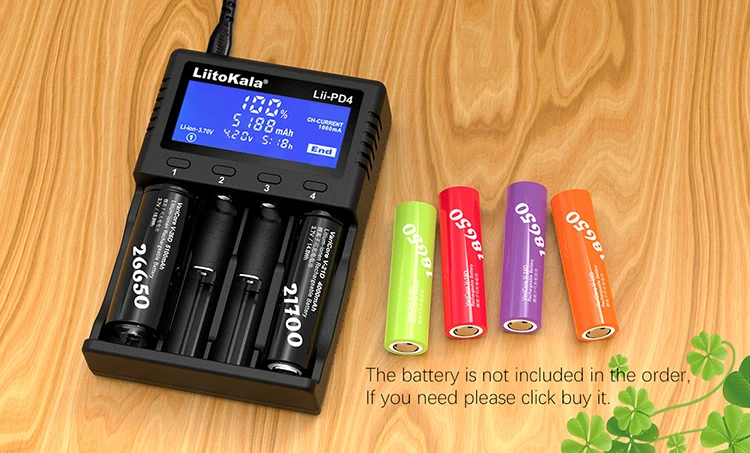

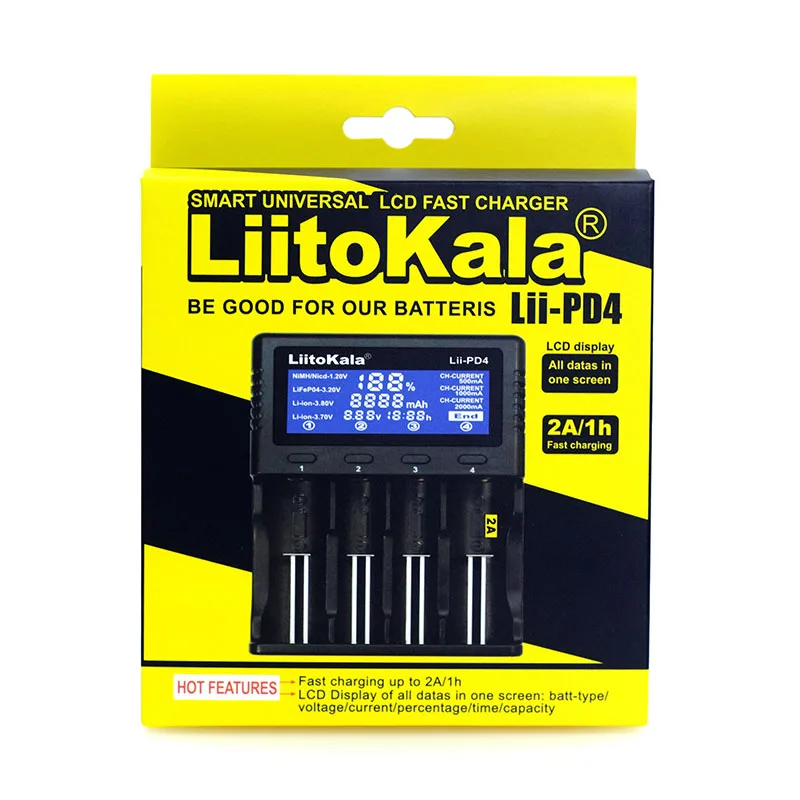

LiitoKala Lii-PD4 Lii-PD2 Lii-402 Lii202 Lii100 18650 Charger Universal Smart Charger for 26650 18650 21700 18500 AA AAA battery

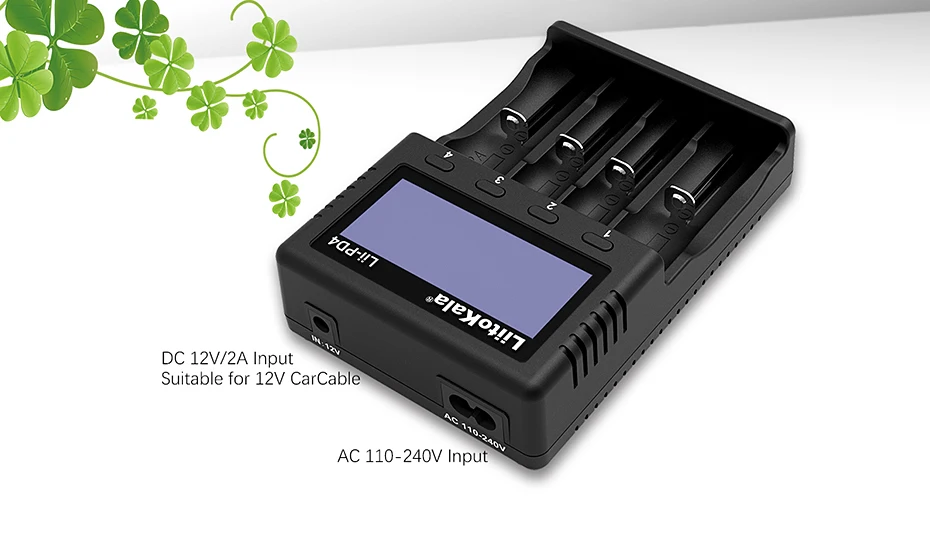

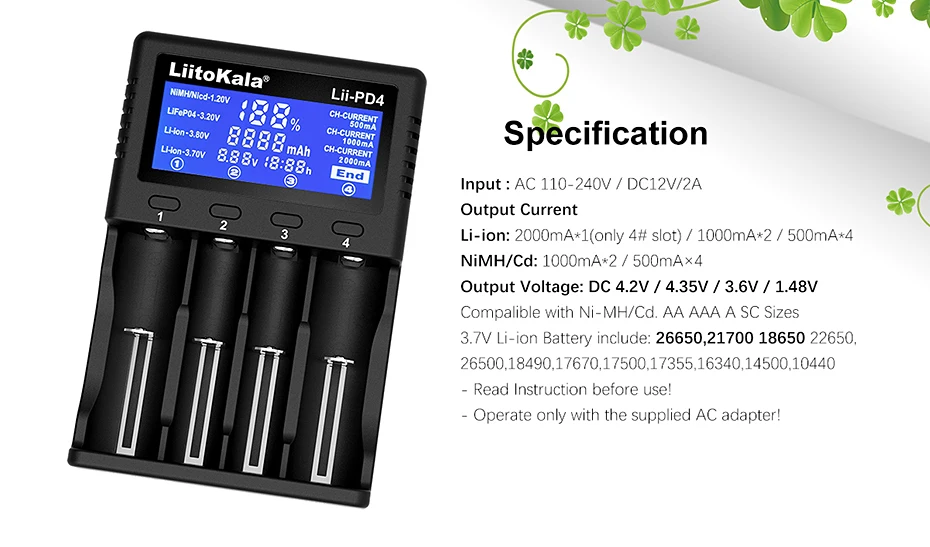

1. Input : AC cable 110-240V 50/60Hz (included)/ DC 12V 1A(selective)
2. Output voltage: DC 4.2V for Li-Ion 3.7V
DC 4.35V for Li-Ion 3.8V( IMR)
DC 3.65V for LiFePO4
DC 1.48V for NiMH/NI-Cd

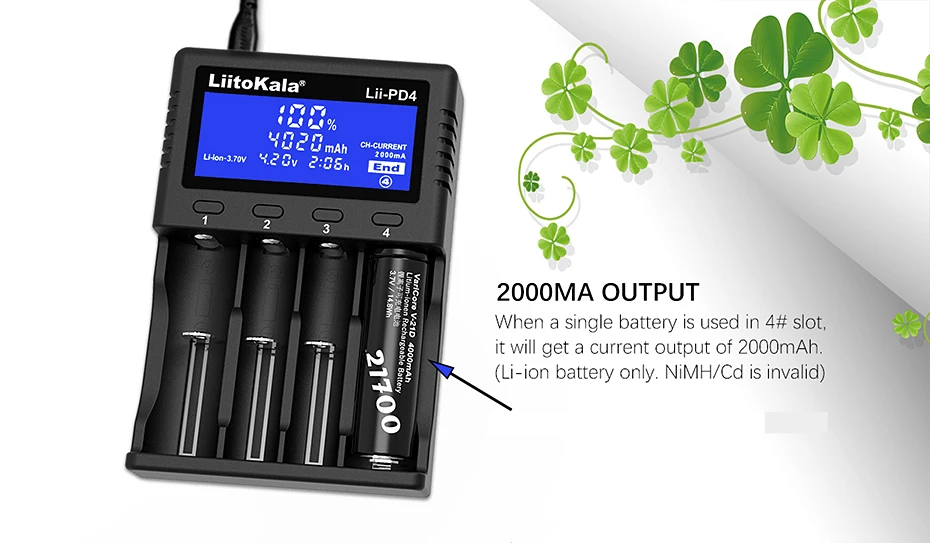

3. Output current: Li-Ion/IMR/LiFePO4 2000mA*1(only for slot#4),
1000mA*2, 500mA*3 500mA*4
NiMH/NiCd: 1000mA*2, 500mA*3 500mA*4
4. Constant voltage, cut-off current: less than 100mA
5. Standby current: less than 15mA
Compatible battery types and sizes
Li-ion / IMR/LiFePO4: 26650,21700,20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500,
10440
NiMH/Cd: AA, AAA,SC, C

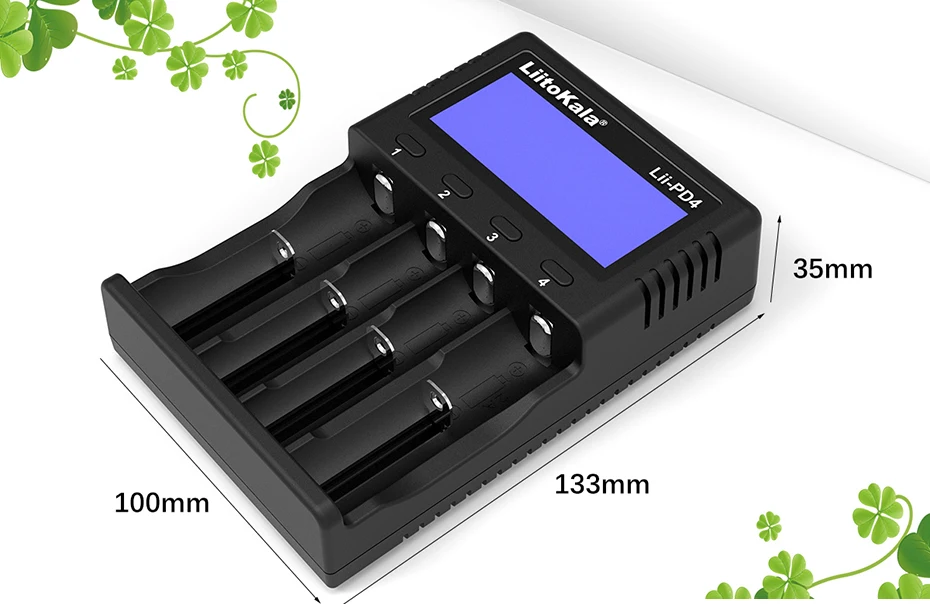

Size and weight:
133mm x 100mm x 35mm (L x W x H)
Weight: approx175g (not including AC cable)

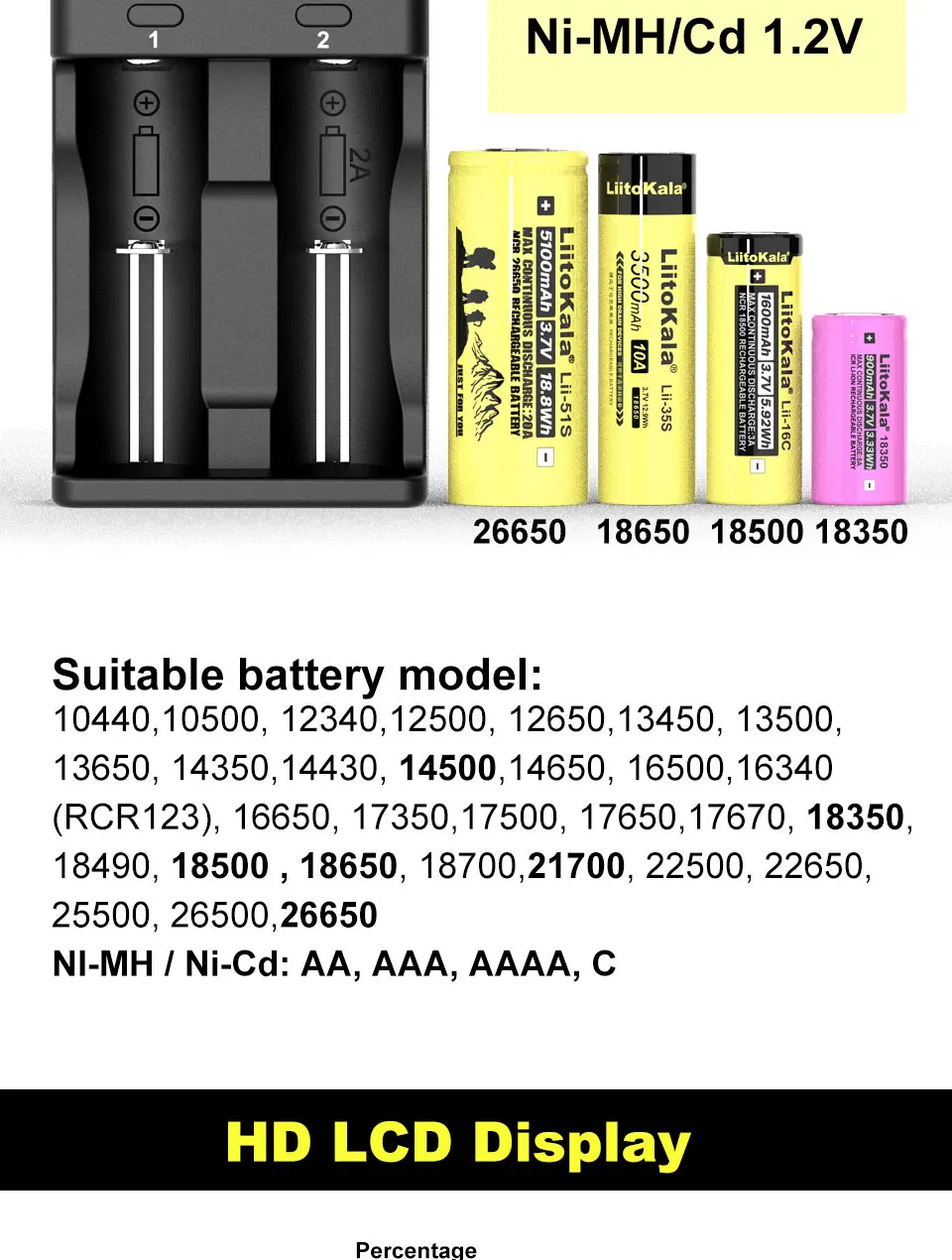

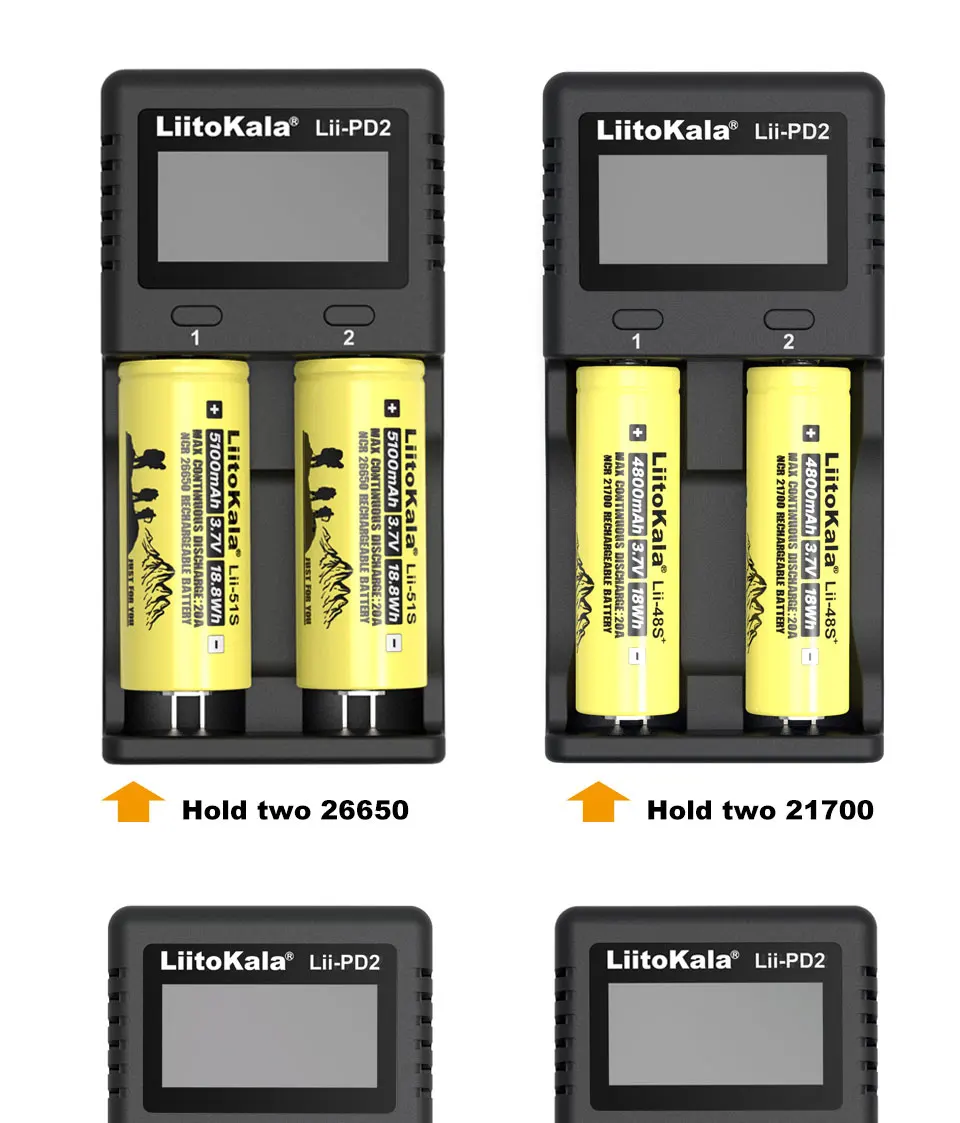

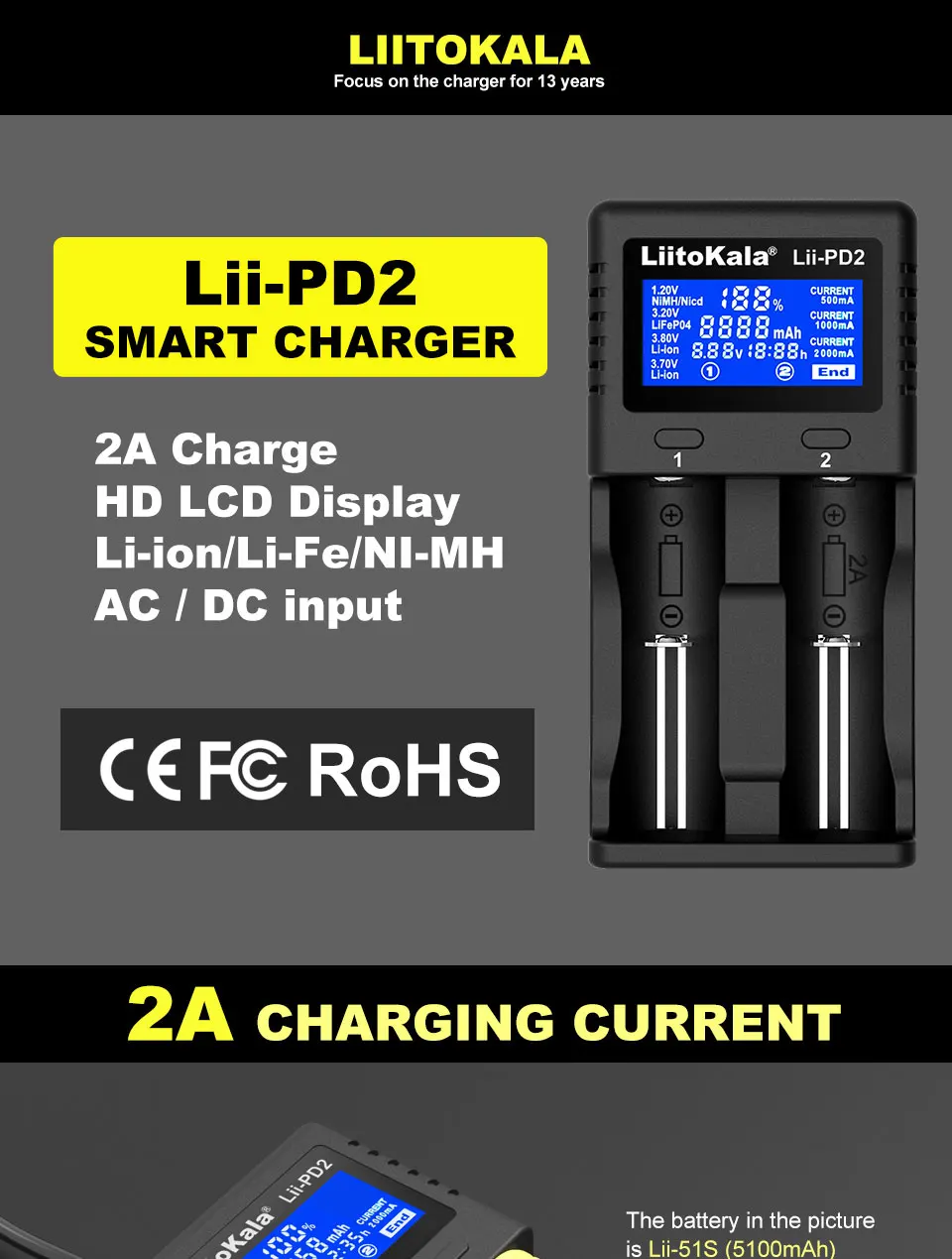

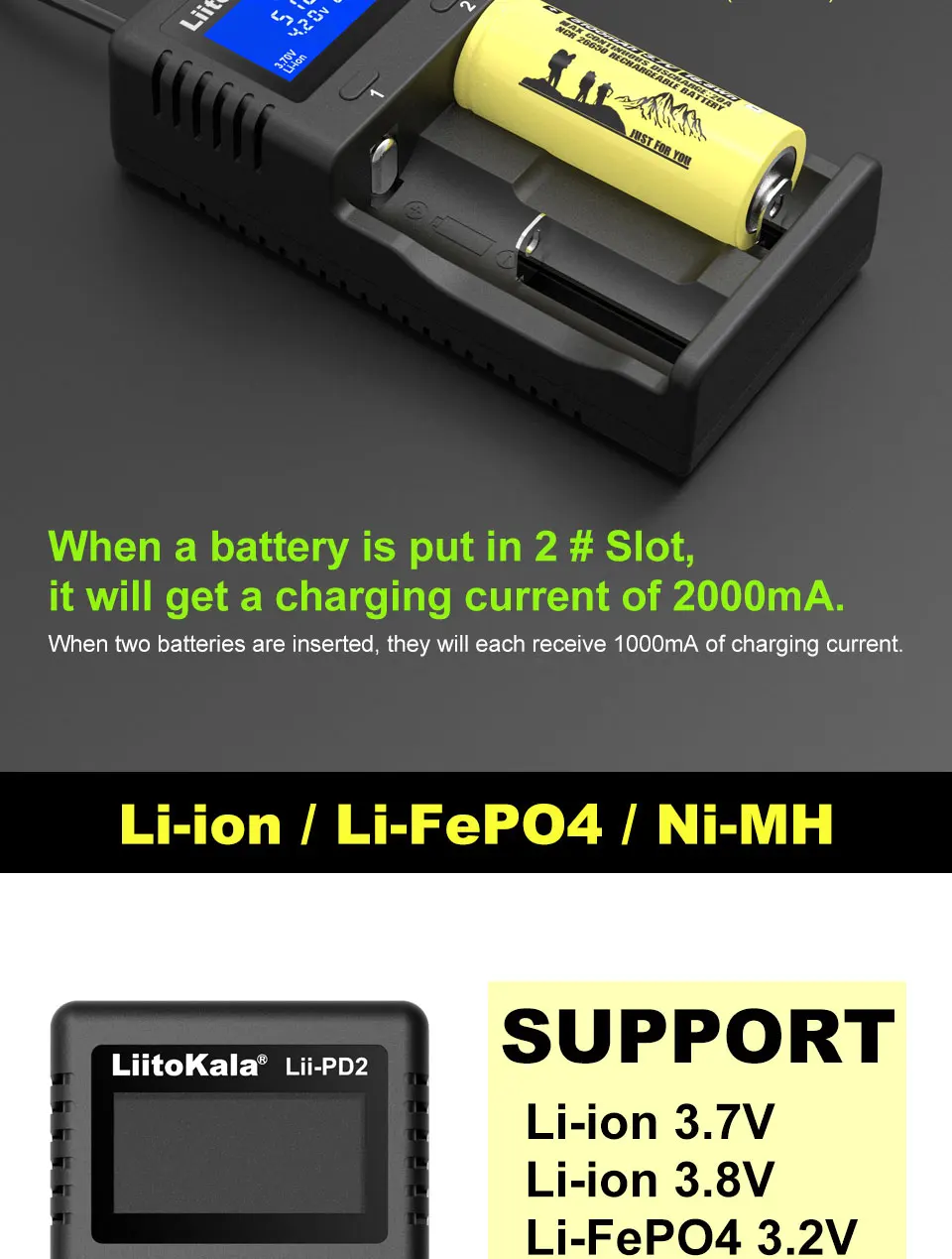

Lii-PD2 Charger details:

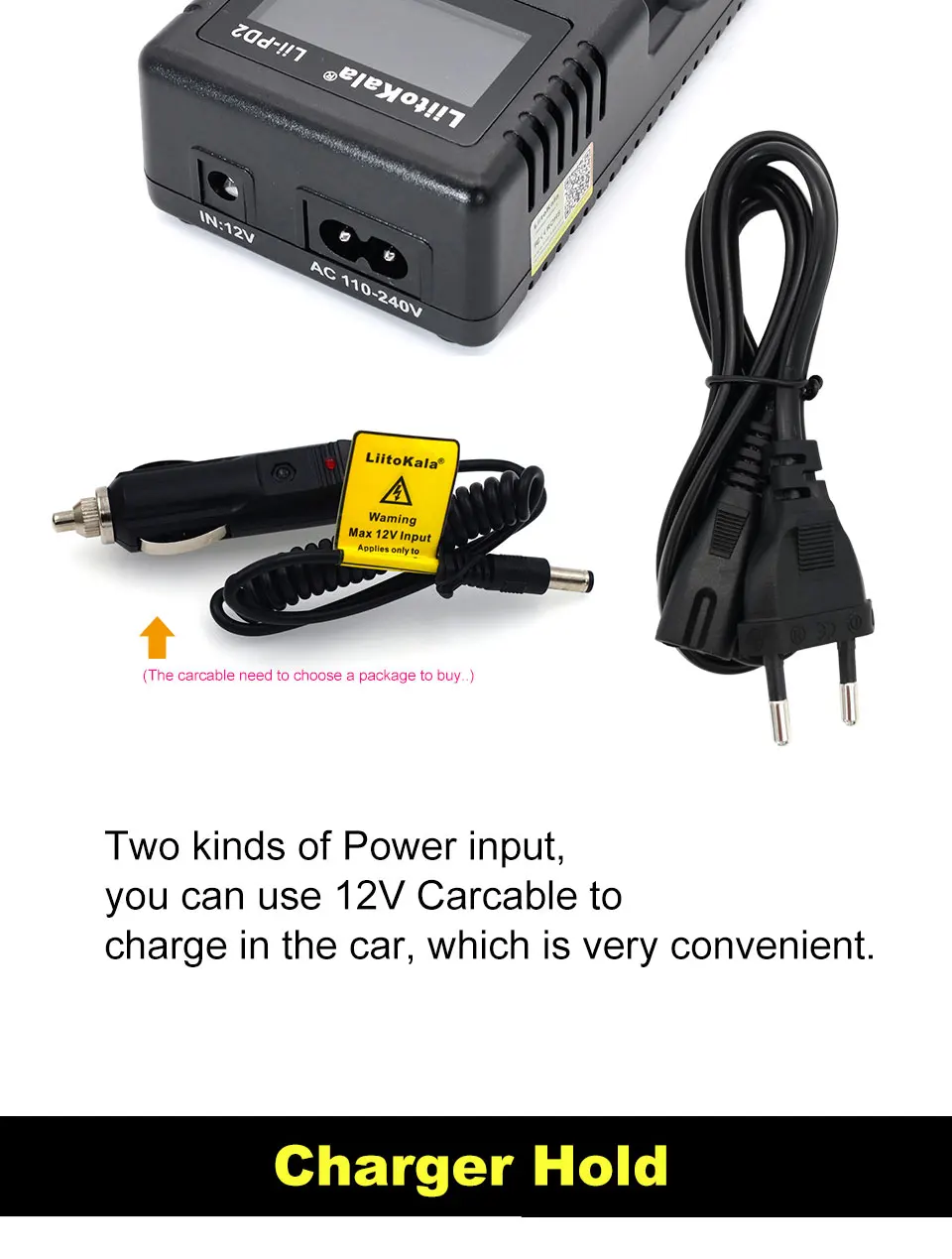

1. Adopt DC12V1A (nominal) input, two-slot independent charging and microcomputer management system;
2. The biggest highlight of this charger is that it can charge the battery regardless of polarity!
3. The charging current has three levels of 0.5A /1.0A/2.0A, the default is 0.5A charging, you can press the corresponding button to select the charging current;

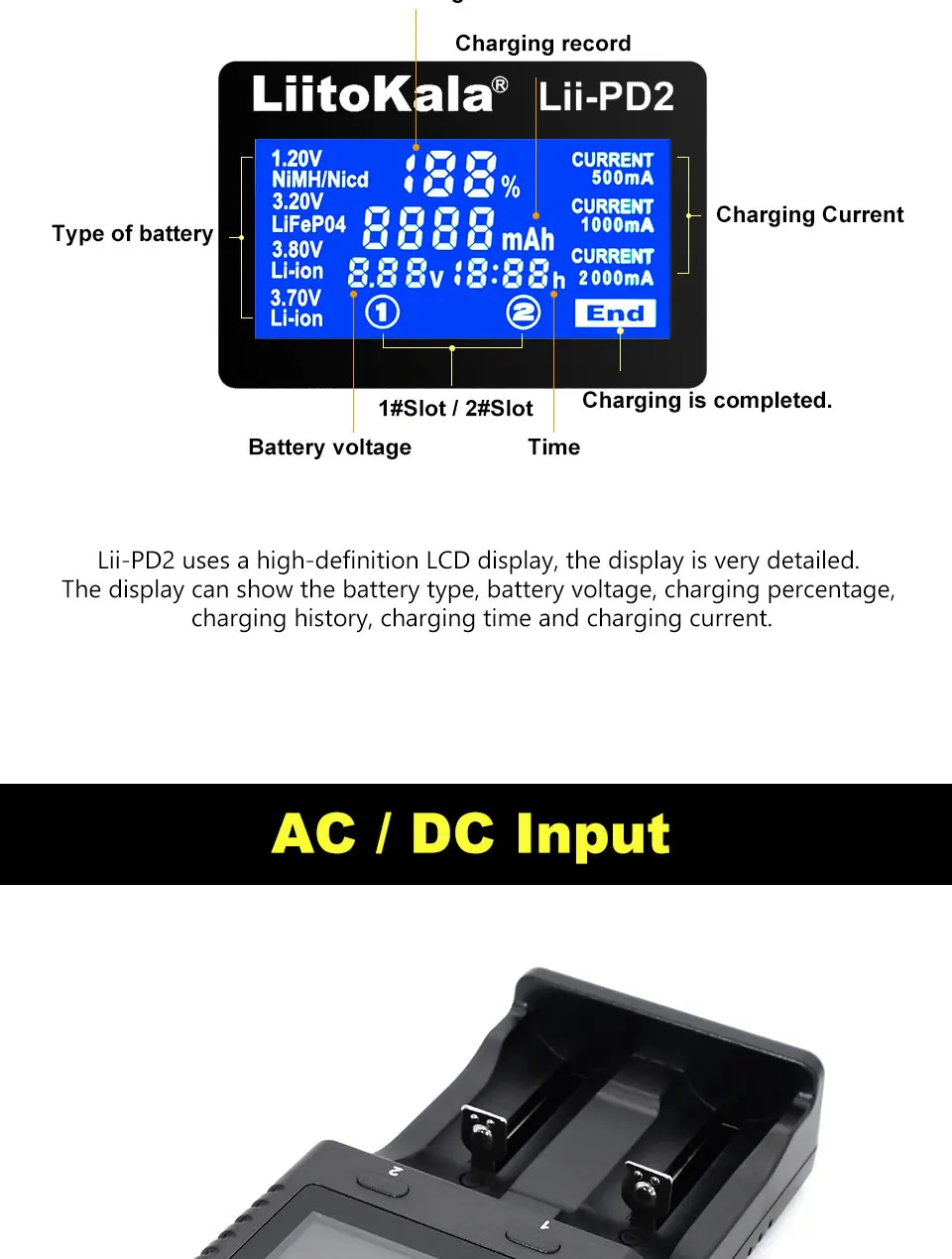

4. During charging, the LCD can display the channel CH and the charging current, voltage, time, capacity and battery type of the channel Li-Fe 3.20V /
Li-ion 3.70V / Li-ion 3.85V (IMR); the charging current of the two tanks does not exceed 2A in total, that is, when one of the tanks is charged with 2A current, and then the battery is charged in the other tank, the front 2A current will drop Charge to 1A current; LCD will display FULL when the battery is full;
5. Li-ion (Li-Ion 3.70V) battery and nickel-metal hydride (Ni-MH) battery can be automatically identified, and the lithium iron phosphate battery (3.20V) and
Li-Ion 3.85V battery;
6. With 0V voltage activation function, 1.65-2.20V can not be charged (but there will be activated current trickle type charging).
7. There are multiple safety protection functions such as overcharge, overdischarge, short circuit, etc. At the same time, it can intelligently and automatically identify bad batteries;
8. Charging mode: constant current and constant voltage.

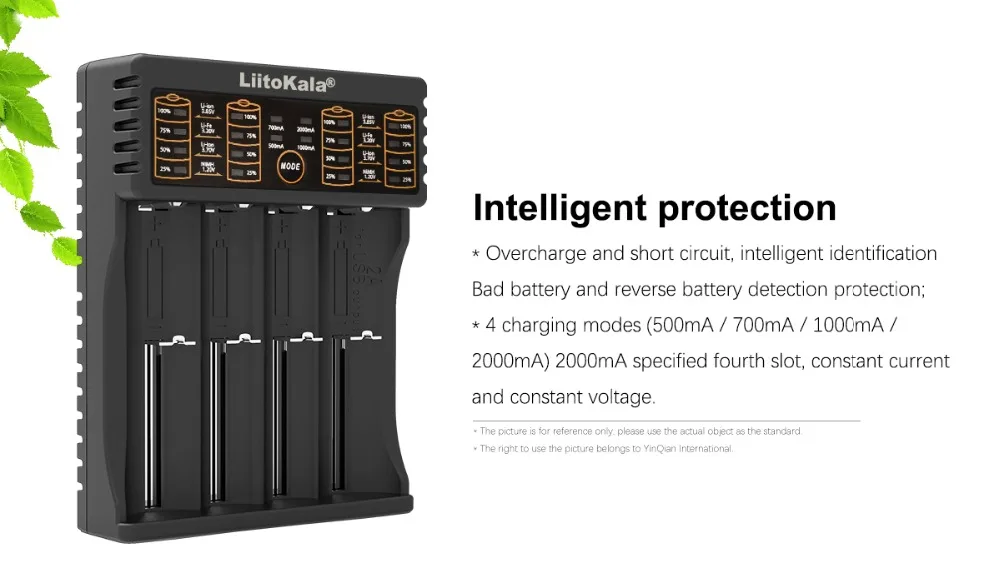

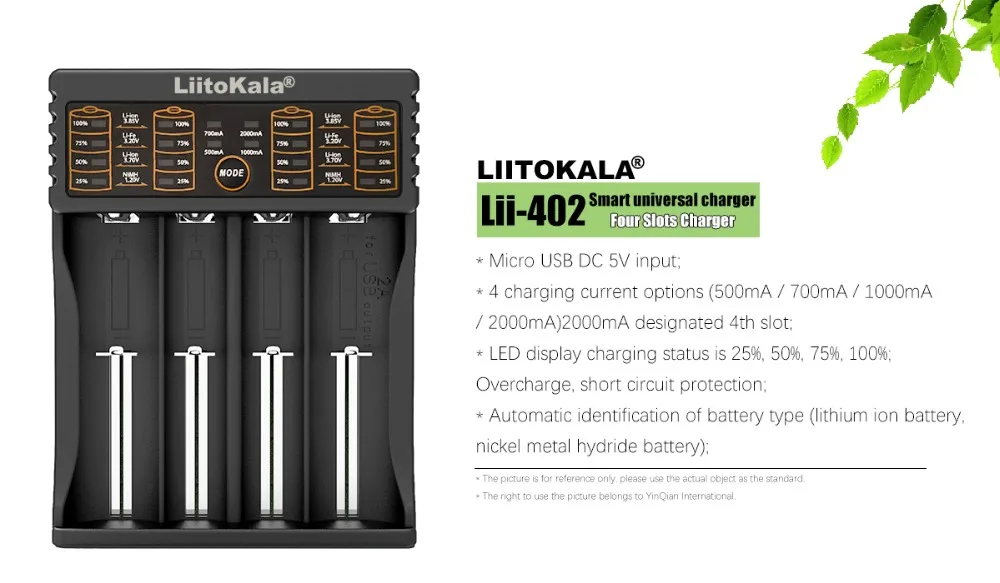

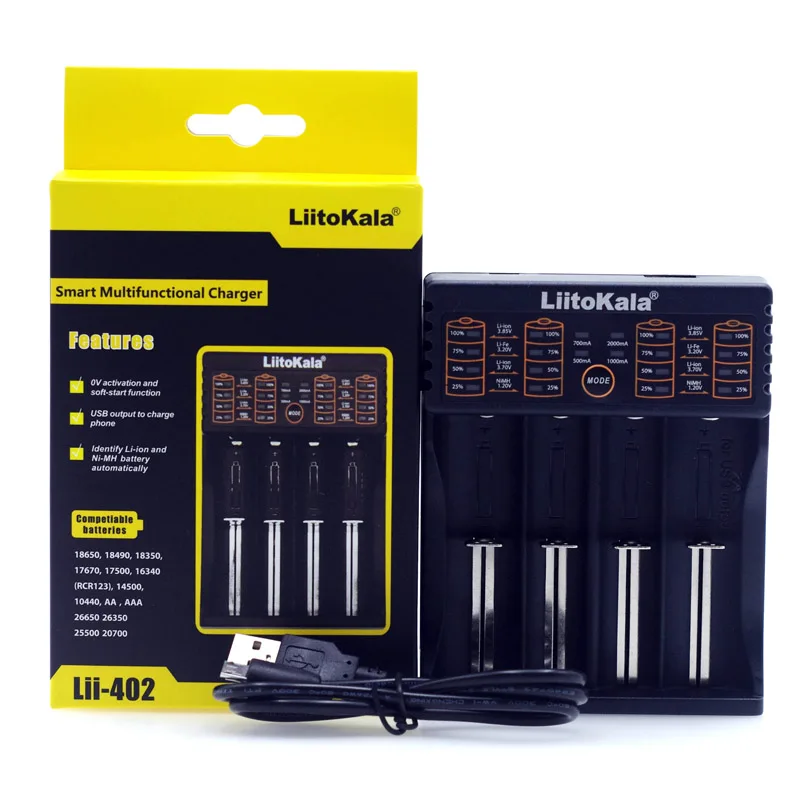

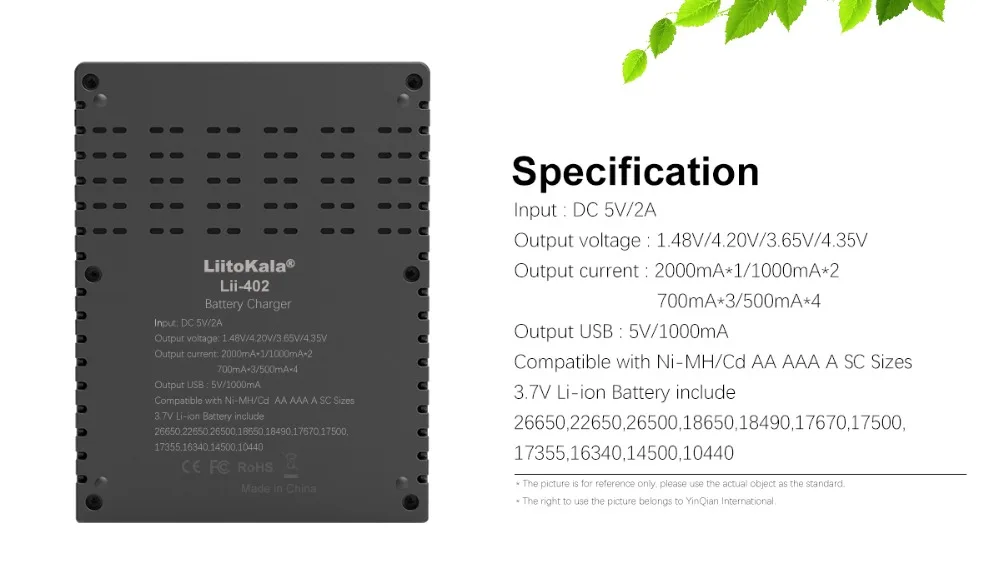

Lii-402 Charger details:
Input : DC 5V/2A
Output voltage : 1.48V/4.20V/3.65V/4.35V
Output current : 2000mA*1/1000mA*2700mA*3/500mA*4
Output USB : 5V/1000mA
Compatible with Ni-MH/Cd AA AAA A SC Sizes
3.7V Li-ion Battery include
26650,22650,26500,18650,18490,17670,17500,17355,16340,14500,10440

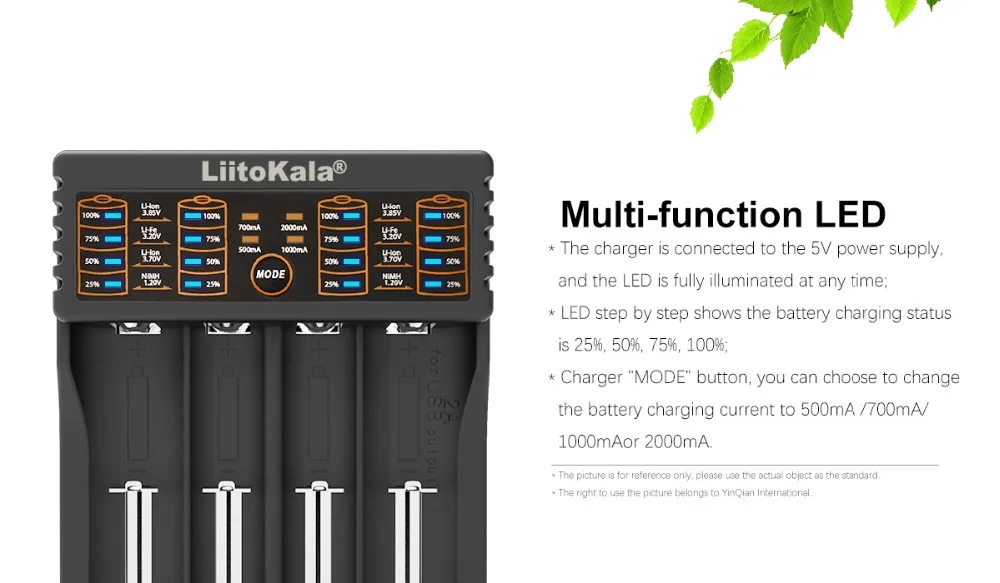

Features
– Micro USB DC 5V input;
– 4 charging current options (500mA / 700mA / 1000mA/ 2000mA)
2000mA designated 4th slot;

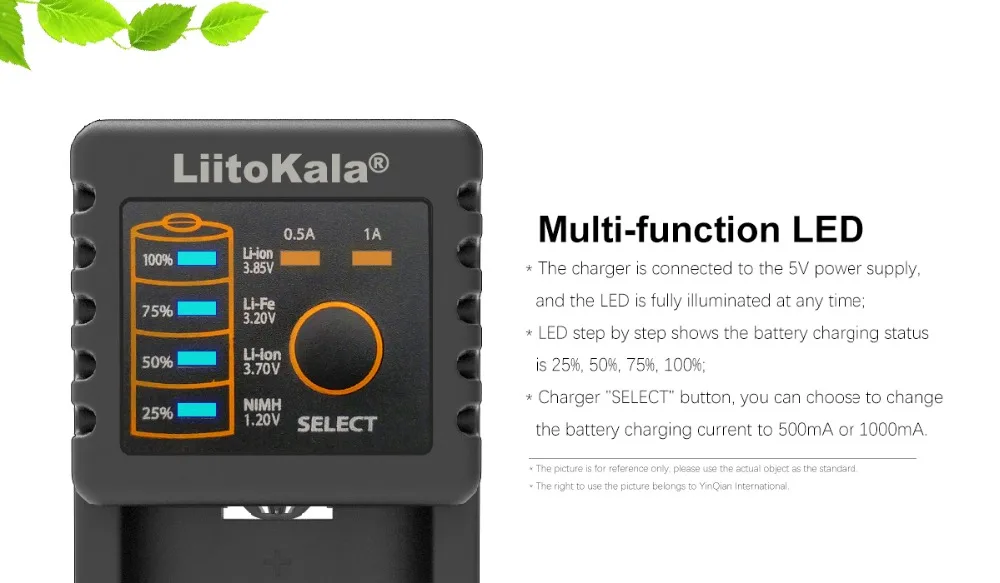

– LED display charging status is 25%, 50%, 75%, 100%;Overcharge,
short circuit protection;

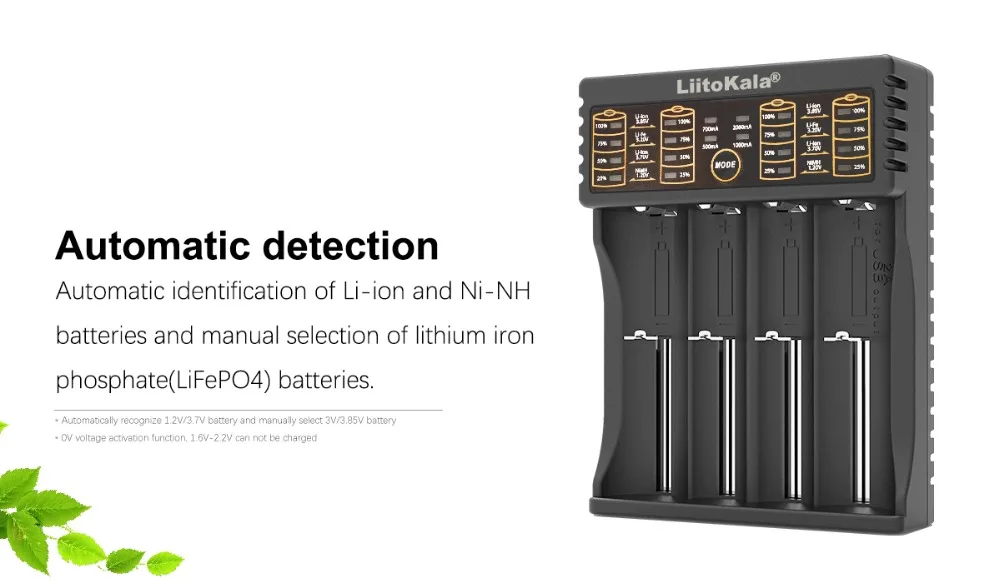

– Automatic identification of battery type (lithium ion battery,
nickel metal hydride battery);

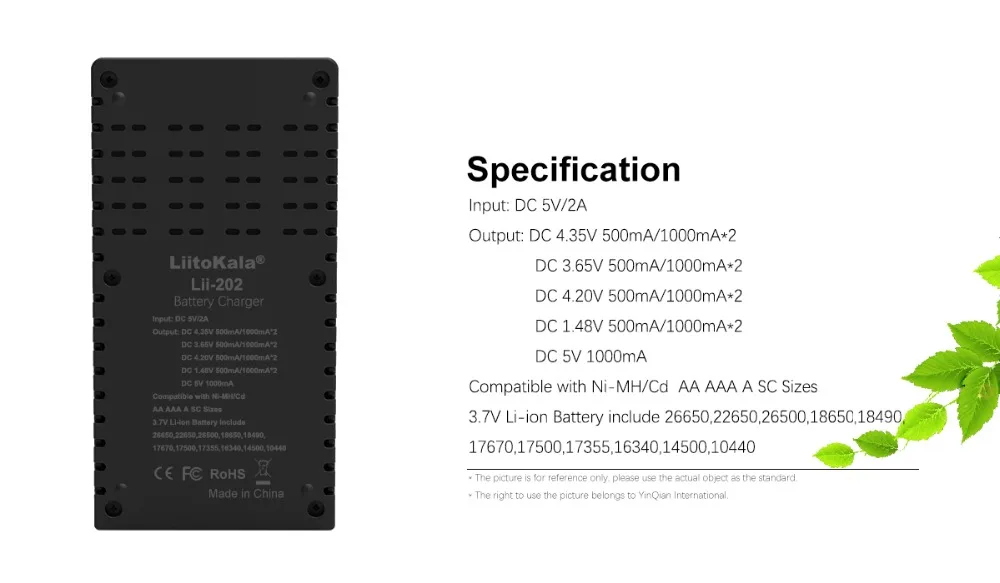

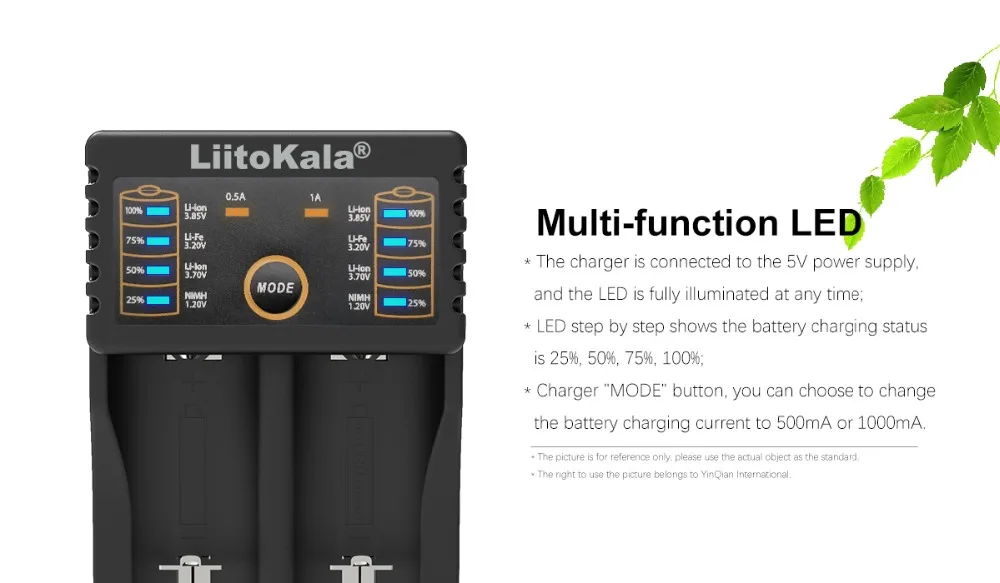

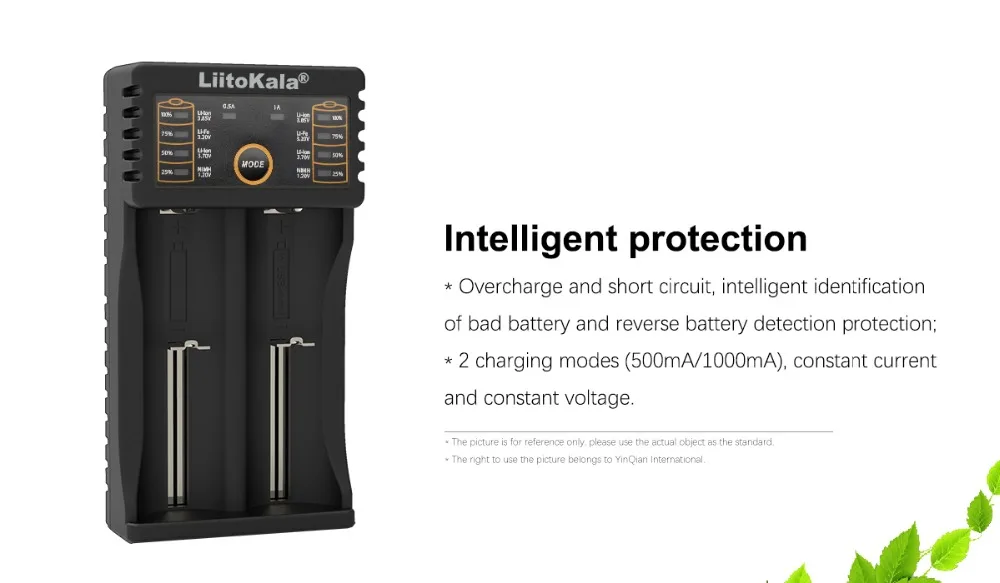

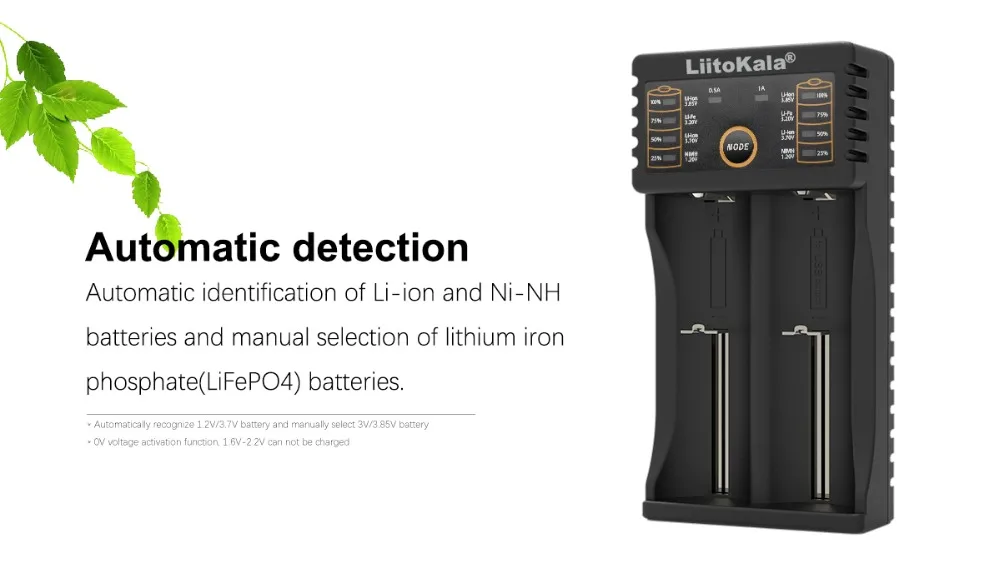

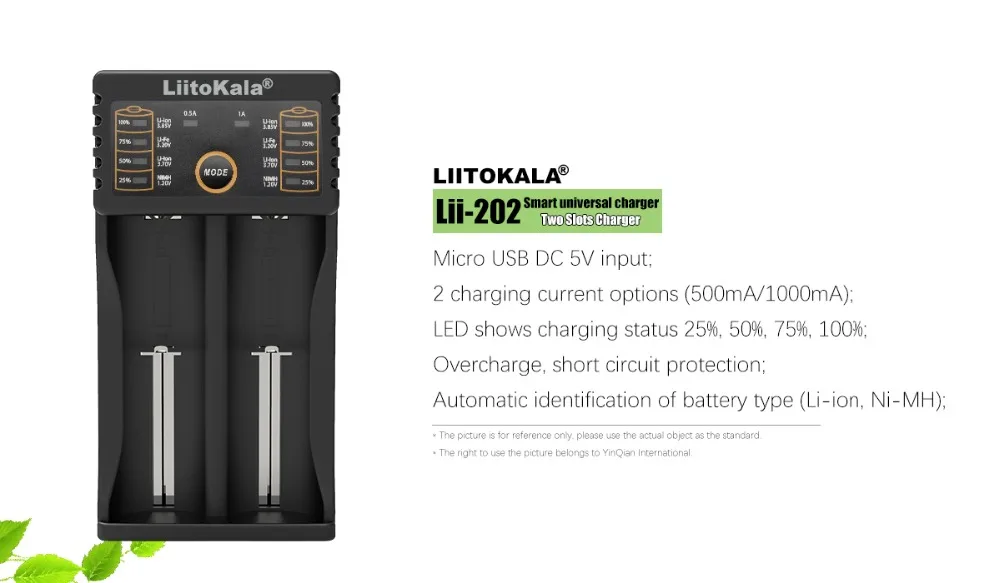

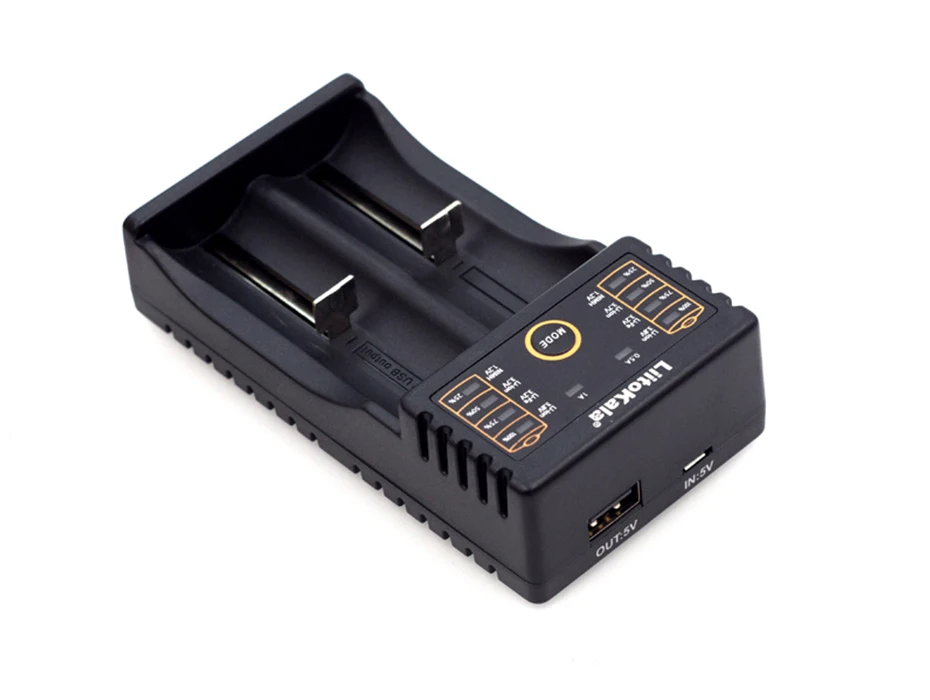

Lii-202 Charger details:
Input: Micro USB DC 5V/2A
Output: 1.4V , 4.2V±0.05V , 3.65±0.05V , 4.35±0.05V
Output current: 500/1000mAh
Constant voltage charging, cutoff current: < 100mAh
Standby current:<15mAh

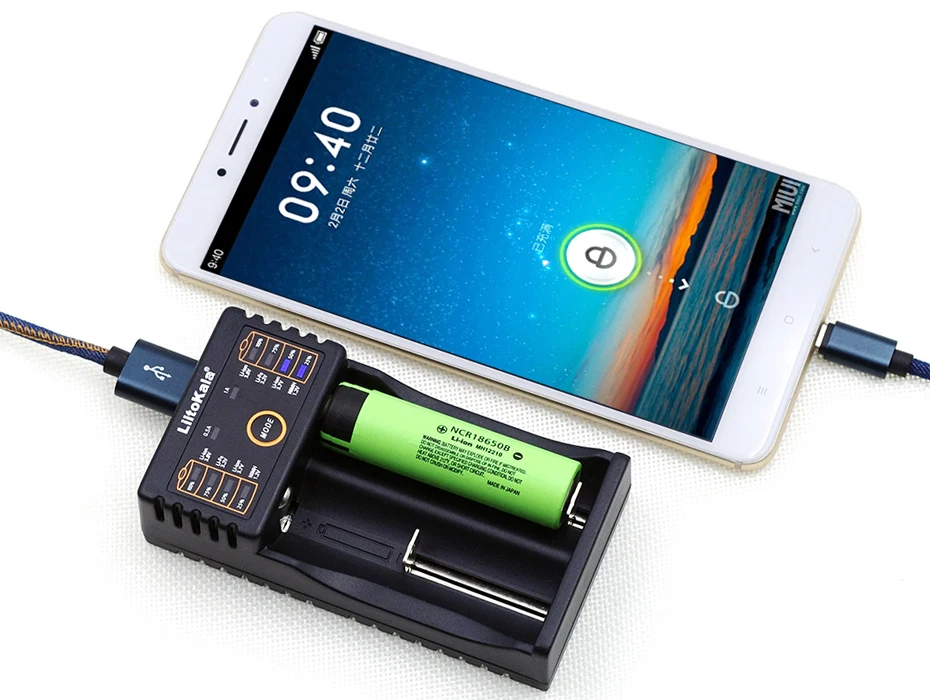

5. USB Output Function
USB output no-load voltage: 4.90V-5.30V
Output current: 1000mAh (1A)
No-Load current: < 1mAh
The output voltage is 4.75V-5.25V when current is 1000mAh
Output protection voltage: 3.0±0.1V
6. Compatibility
Li-ion/IMR: 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
7. Size
112mm× 60mm×30mm/ 86grams + 15gram USB cable

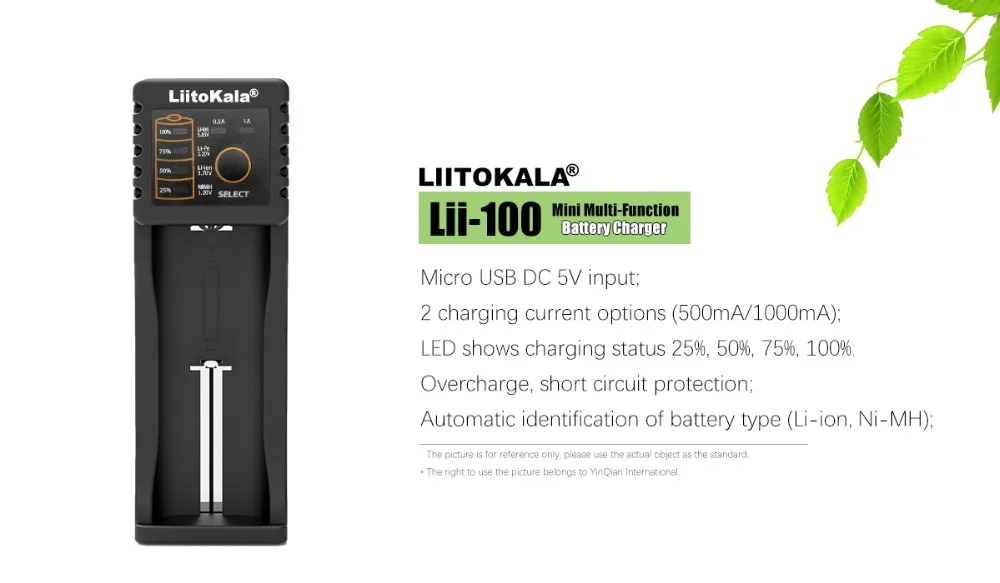

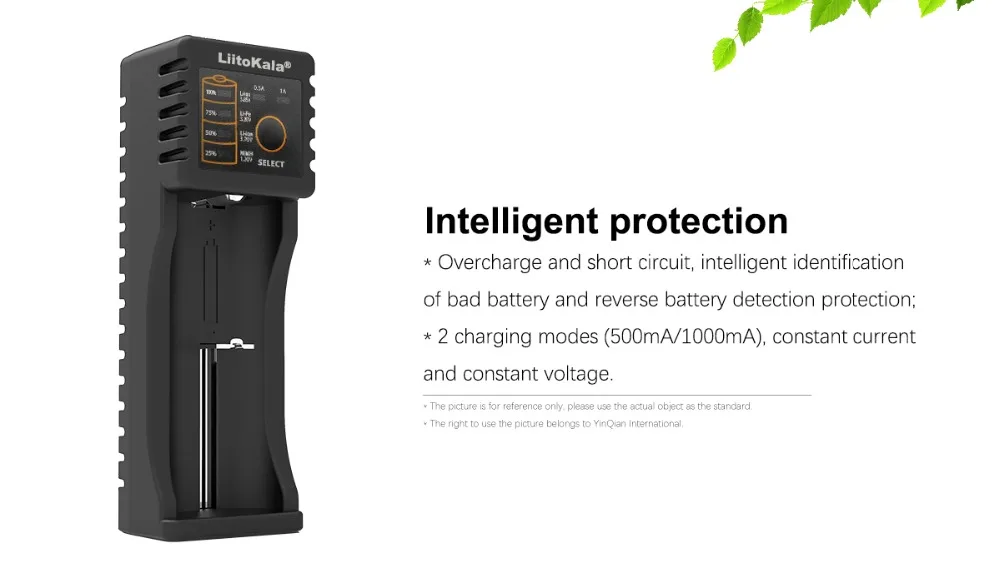

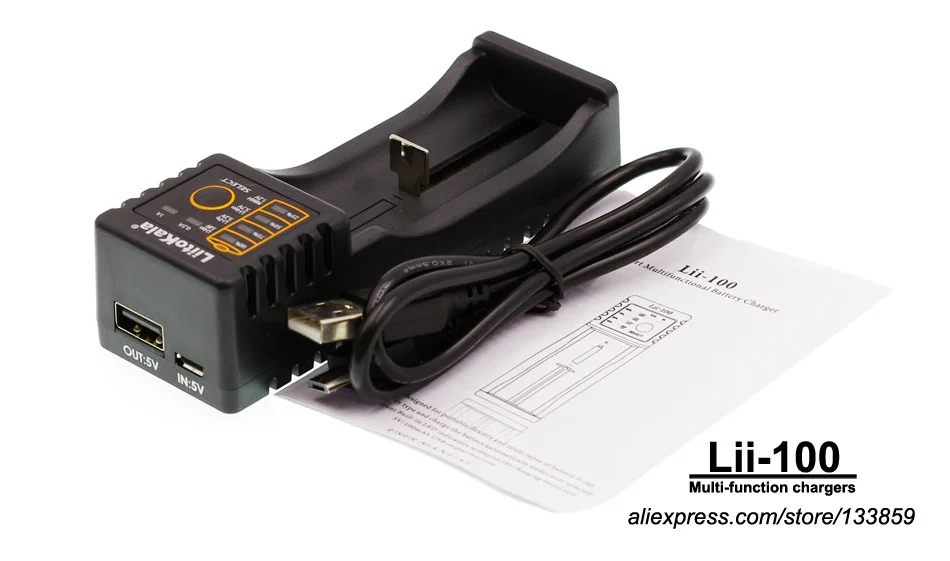

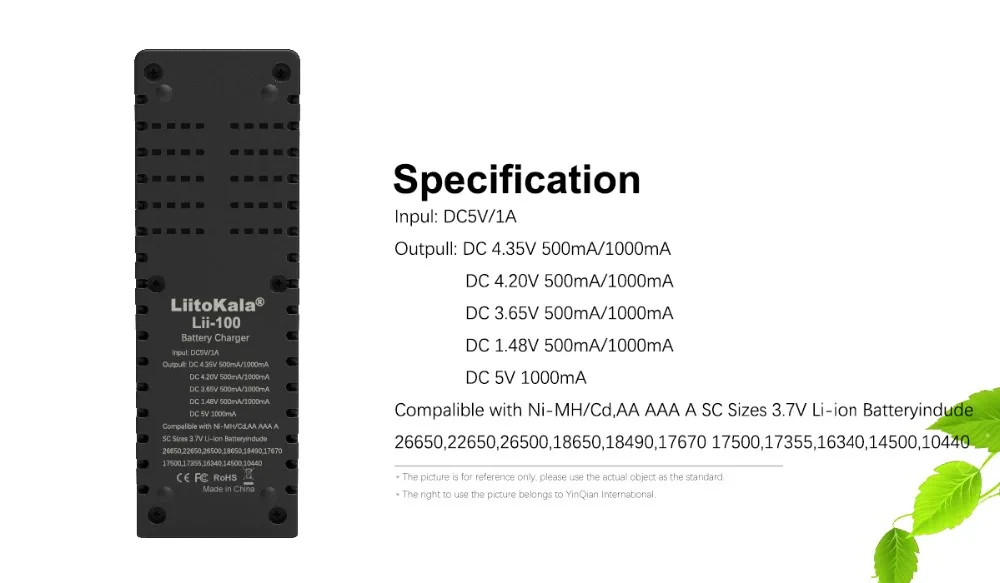

Lii-100 Charger details:
Input Power: Micro USB DC 5V/1A
Output voltage: 4.2V ±1% / 5V
Output current: 500mAh / 1000mAh
Constant charging with cut-off current less then 100mAh
Standby current: No more than 15mAh
USB output open-circuit voltage:4.90-5.30V
Output voltage: 1000mAh and output voltage is 4.75-5.25V
Cut-off voltage for output: 3.0±0.1V;
Compatible Batteries::
Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
Size(cm)/Weight(grams):
Length 112mm x Width 37mm x Height 32mm
45 grams (charger) + 17grams (USB cable) included in delivery
